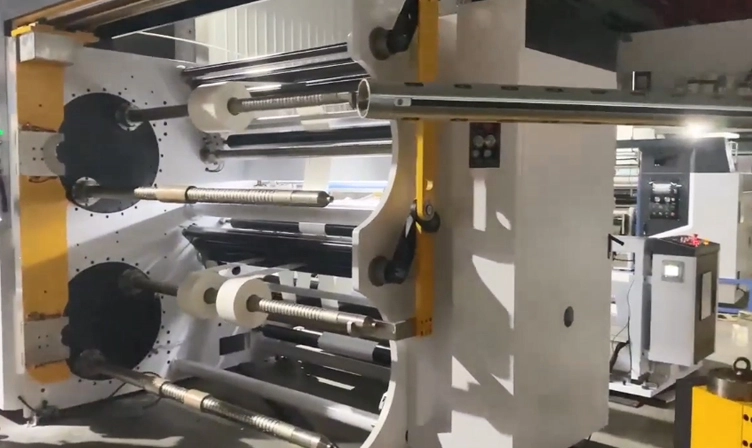

Equipped 7 servo motors, to enable the machine slitting, rolating and rewinding precisely. Rewinding diameter even can be up to 80mm! Fully auto blade set, auto loading, 4 shaft turret, auto pushing and unloading, all the automations boost the efficiency and minus the downtime for customers.

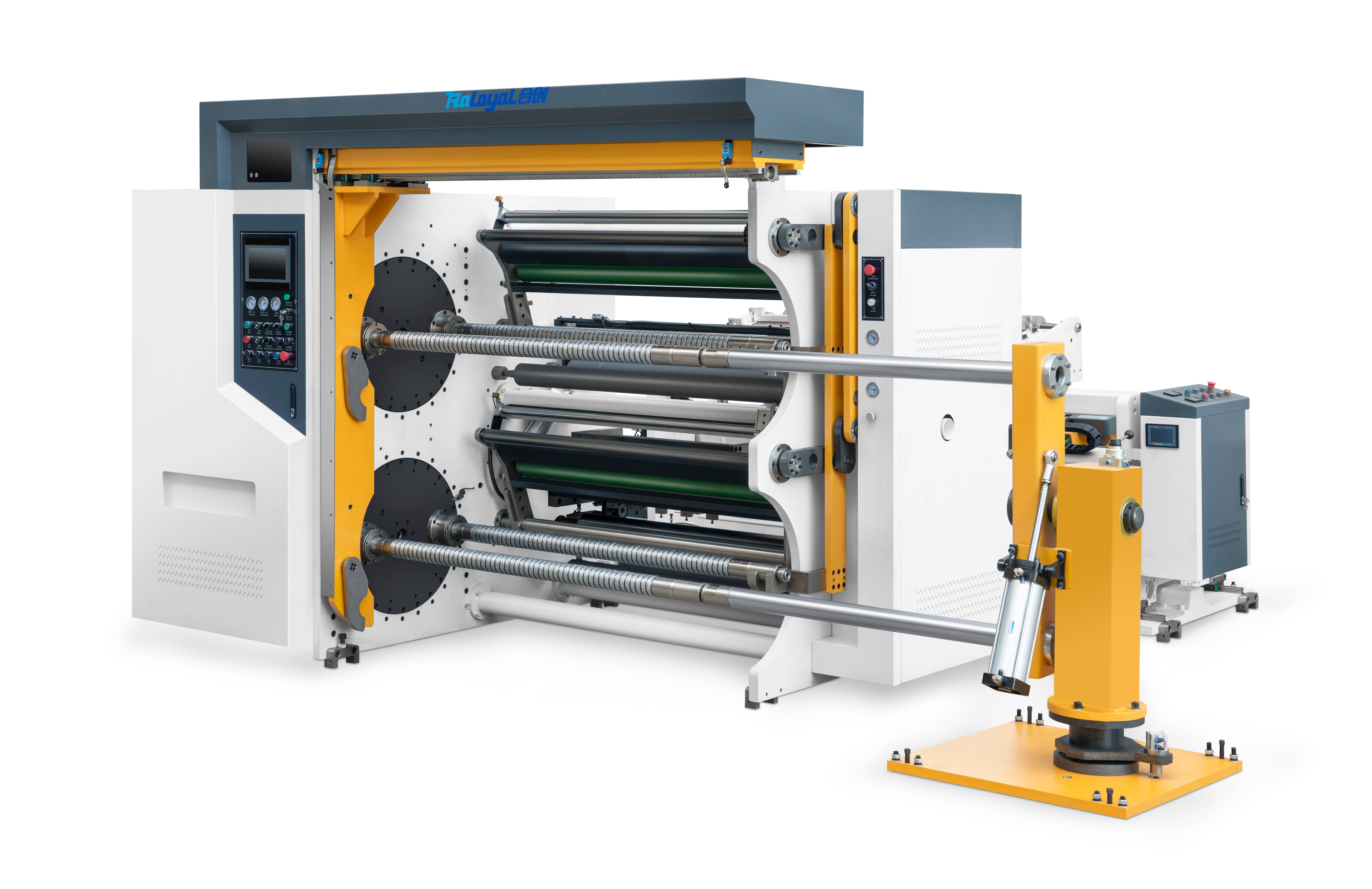

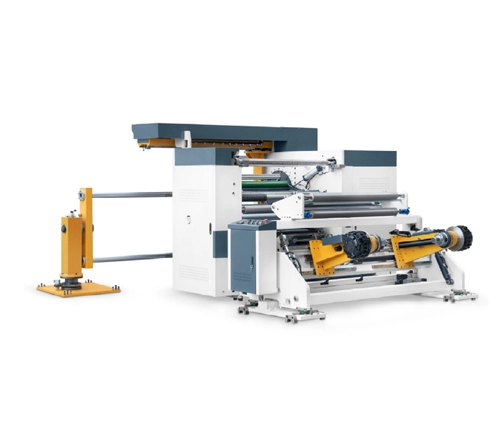

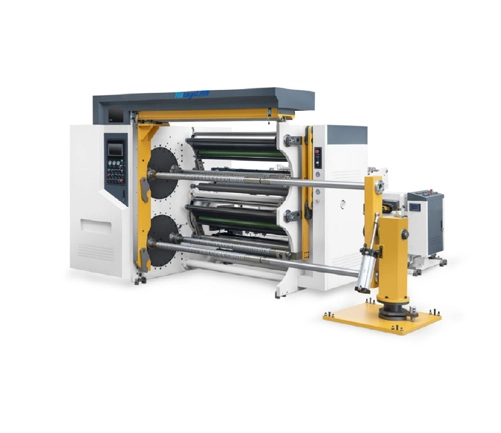

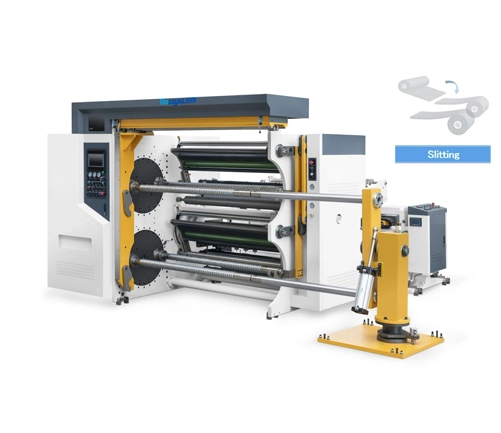

Pro Series Four-Axis Turret Slitting Rewinding Machine, another innovation from Raloyal, is widely applied to soft and flexible packaging materials (including PE, PP, PET, BOPP, PVC, composite films and other coiled cylindrical materials) and also suitable for processing labels and adhesive stickers like art paper labels, tire labels and PE/PP labels.
This machine has following advantages:

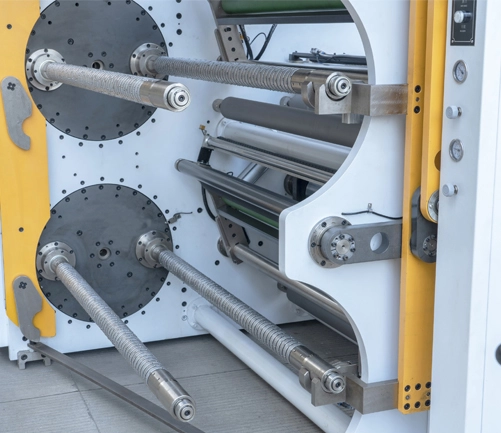

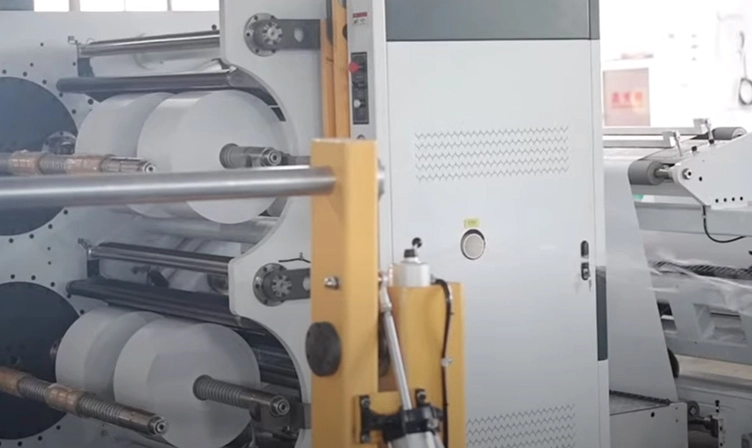

4-shaft turret rewinding.
high efficiency & fast roll change.

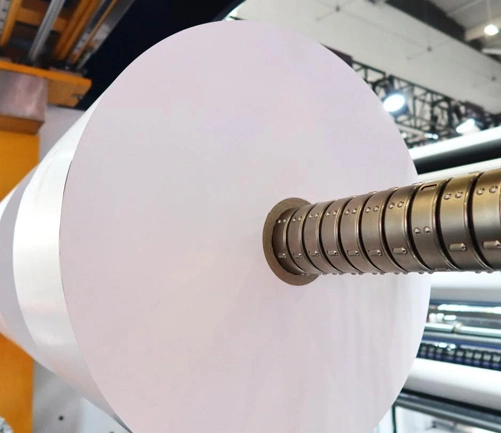

Large rewinding diameter – up to 800mm.
Max 500m/min high speed.
can meet full-auto production line - auto knife seeting/unloading as option.
Machine model | HCT4-1300 | HCT4-1600 |
Unwinding width | 1300mm | 1600mm |
Unwinding diameter | Φ1200mm | Φ1200mm |
Max. Rewinding diameter | Φ600mm | Φ600mm |
Thickness range | 0.012-0.2mm | 0.012-0.2mm |
Max. Slitting speed (depend on material) | 500m/min | 500m/min |
Min. Slitting width | 70mm | 70mm |
Traction power | 5.5kw | 7.5kw |
Rewinding power | 7.5kw*4 | 7.5kw*4 |
Yes.
Yes. Exactly.
The HCT4 turret slitter could slitting PE/PP/PET/BOPP/PVC, Composite membrane and other coiled cylindrical material, etc.
And HCT4 still be suitable for Labels and Adhesive sticker.Such as art paper labels,tire labels, pe/pp labels, etc.
Yes, HCT4-1300/1600 could equip die cutting online.
Yes, Exactly. This machine has been specially treated.
Machine as usual is integrated and we do not dismantle before delivery.
So just connect the power cable and air pipe is ok.
For the operation, we take instruction video for all customers before delivery to guide you how to operate, and provide the instruction file.
Also, we provide service: our engineer and technician open live training until you learned it and run it well.
12 months guarantee, life-long time technic maintenance and support. 24 hours feedback when receive the client writing militance proposal.
Any part damage caused by non-human factors within the warranty period can be replaced for free, excluding machine consumable parts. Maintenance of part damage caused by violation operation or mis-operation of operators will be charged with costs of parts.
The price of spare parts exceeding the warranty period shall be the lowest ex-factory price of the seller.
For extra accessories beyond the standard configuration of contractual machine, the price shall be the lowest ex-factory price of the seller.
Any time you have question about slitter, we are always here to provide service.
